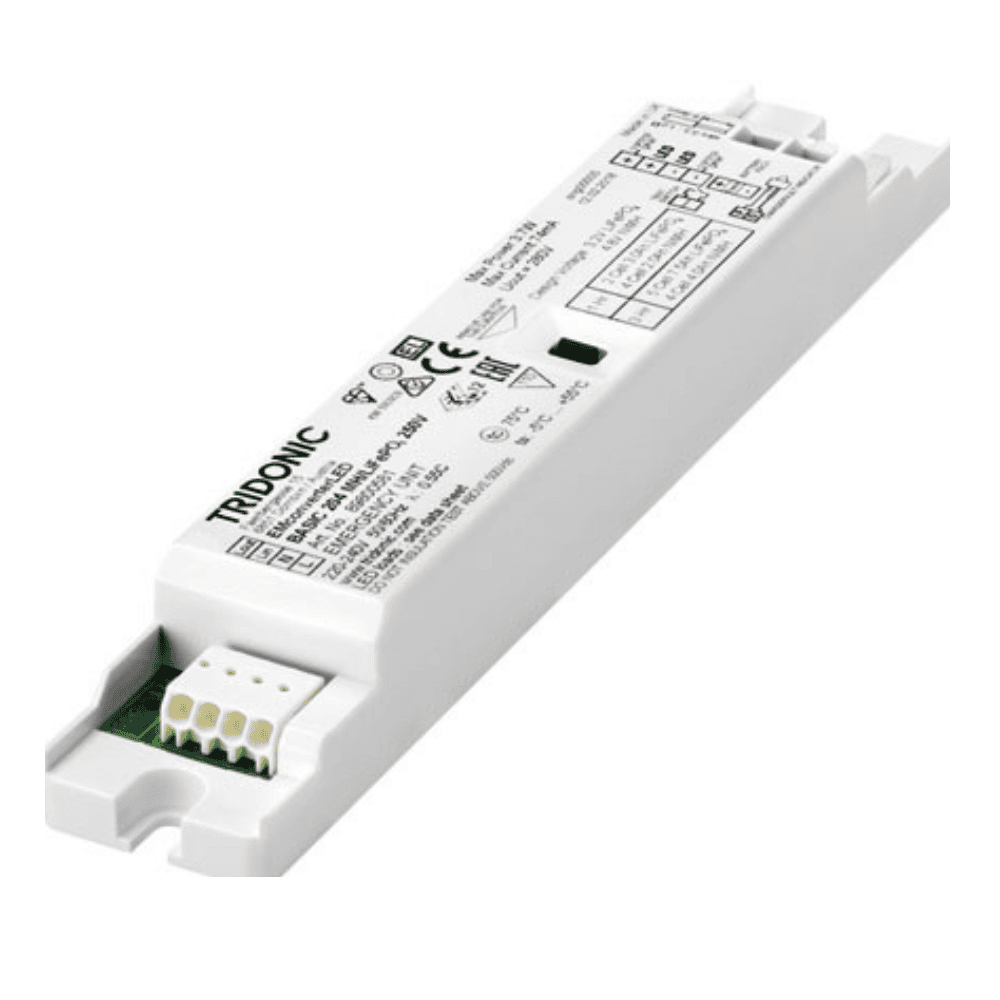

Tridonic EM converterLED PRO 203 MH/LiFePO4 50V DALI Emergency Driver – 89800628

The Tridonic EM converterLED PRO 203 MH/LiFePO4 50V is a DALI-2 emergency LED conversion unit designed for installation inside compatible self-contained emergency luminaires.

It operates suitable LED modules with a combined forward voltage between 10 and 54 V. Typical emergency output is 2.5 W when used with an approved NiMH battery or 3.2 W with an approved LiFePO4 battery.

Emergency duration can be configured for one, two or three hours using the duration-selection link. The unit is supplied with the link in the three-hour position and the required duration must be selected before connecting the battery and mains supply.

The integrated DALI-2 interface provides controlled testing, monitoring and fault reporting. The unit automatically monitors the connected battery and emergency LED load, performs regular functional and duration testing, and communicates its status to a compatible DALI emergency-lighting system.

Three-pole switching technology provides two-pole LED-module changeover and delayed mains switching for the associated normal LED driver. The same LED module can therefore operate from a separate LED driver under normal mains conditions and from the emergency converter following a mains failure.

Tridonic specifies the emergency control gear itself for non-maintained operation. If the converted luminaire remains illuminated normally, that maintained illumination is supplied by the separate mains LED driver.

TECHNICAL SPECIFICATION

• Manufacturer: Tridonic


• Manufacturer part number: 89800628


• Model: EM converterLED PRO 203 MH/LiFePO4 50V


• DALI Alliance product ID: 6367


• Product type: Self-testing emergency LED conversion unit


• Product range: EM converterLED PRO


• Emergency operating mode: Non-maintained control gear


• Testing system: Automatic self-test and DALI-2


• Rated supply voltage: 220–240 V AC


• Permitted AC voltage range: 198–264 V


• Mains frequency: 50/60 Hz


• Emergency duration: Selectable 1, 2 or 3 hours


• Typical emergency output with NiMH battery: 2.5 W


• Typical emergency output with LiFePO4 battery: 3.2 W


• Output characteristic: Constant power


• LED forward-voltage range: 10–54 V


• Maximum open-circuit voltage: 60 V


• Maximum U-OUT: 60 V


• Output classification: SELV


• Emergency starting time: Less than 0.5 seconds


• Compatible battery chemistry: Approved Tridonic NiMH or LiFePO4


• NiMH battery voltage: 3.6 V


• NiMH battery discharge current: 890–960 mA


• LiFePO4 battery voltage: 3.2 V


• LiFePO4 battery discharge current: 1,150–1,250 mA


• NiMH initial charging time: 20 hours


• NiMH fast recharge time: 10 hours for one-hour operation; 15 hours for two- or three-hour operation


• LiFePO4 initial charging time: 24 hours


• LiFePO4 fast recharge time: 24 hours


• Automatic function test: Weekly, 5 seconds


• Automatic duration test: Annually, according to the selected duration


• Communication interface: DALI-2


• DALI bus-current consumption: 1.62 mA


• Status indication: Compatible bi-colour LED; green for normal operation and red for a fault


• Rest-mode capacity: Up to 100 emergency units


• Maximum rest-mode wiring distance: 1,000 m


• Ambient operating temperature: −25°C to +55°C


• Maximum casing temperature: 80°C


• Ingress protection: IP20


• Mains surge capability, L–N: 1 kV


• Mains surge capability, L/N–PE: 2 kV


• Overvoltage protection: 320 V for 48 hours


• Maximum associated LED-driver load: 150 W


• Maximum associated LED-driver output current: 2 A RMS


• Expected operating life: Up to 100,000 hours


• Guarantee: Five years, subject to Tridonic’s current conditions


• Dimensions: 179 × 30 × 21 mm


• Approximate weight: 70 g


• Manufacturer’s carton quantity: 10 pieces


• Manufacturer’s pallet quantity: 1,600 pieces


• Relevant standards include: EN 50172, EN 60598-2-22, EN 62034, EN 61347-1, EN 61347-2-7, EN 61347-2-13, EN 62384 and DALI standard EN 62386-202

PACKAGE CONTENTS

• 1 × Tridonic EM converterLED PRO 203 MH/LiFePO4 50V


• 1 × duration-selection link

Battery, bi-colour indicator LED, test switch, wiring, strain-relief enclosure and other accessories should only be considered included where specifically stated by the seller.

INSTALLATION AND COMMISSIONING

Installation must be completed by a suitably qualified person in accordance with the Tridonic wiring diagram and applicable emergency-lighting regulations.

Select the required duration before connecting the battery and mains supply:

• Link in position A: Three hours


• No duration link: Two hours


• Link in position B: One hour

The unit is supplied with the duration link in the three-hour position.

Following installation:

• Connect only a battery approved in Tridonic’s current compatibility table


• Connect the bi-colour status-indicator LED


• Confirm that the LED load is within the 10–54 V range


• Allow the battery to complete its specified initial charge


• Perform a functional emergency test


• Complete and record a full-duration test


• Address and commission the DALI-2 interface where required

AUTOMATIC TESTING

The PRO version incorporates automatic emergency-lighting testing and monitoring:

• Weekly five-second function test


• Annual full-duration test


• Automatic monitoring of the battery


• Automatic monitoring of the emergency LED load


• Bi-colour visual status indication


• DALI-2 reporting to a compatible monitoring system

The unit also records operating information relating to the mains supply, battery, LED output and emergency operation. This BlackBox information can be accessed using compatible Tridonic software.

IMPORTANT OPERATING-MODE INFORMATION

Tridonic specifies the 89800628 as non-maintained emergency control gear.

It can, however, be installed with a separate standard or DALI LED driver so that the same LED module operates:

• From the normal LED driver while mains power is available


• From the EM converterLED at reduced output following a mains failure

A completed luminaire may therefore provide maintained normal illumination, but the emergency converter itself remains non-maintained control gear.

IMPORTANT COMPATIBILITY INFORMATION

Before ordering, confirm:

• Tridonic article number 89800628


• LED forward-voltage range of 10–54 V


• Required one-, two- or three-hour duration


• Required emergency output


• Approved NiMH or LiFePO4 battery


• Battery capacity and physical configuration


• Compatibility with the normal LED driver


• Available installation space


• DALI-2 monitoring requirements

Emergency output differs by battery chemistry: approximately 2.5 W with NiMH and 3.2 W with LiFePO4. Use only battery models shown as compatible in Tridonic’s current battery-selection table.

OPTIONAL ACCESSORIES

• Approved Tridonic NiMH emergency battery


• Approved Tridonic LiFePO4 emergency battery


• Bi-colour status LED, 1.0 m – 89800273


• Bi-colour status LED, 0.3 m – 89800274


• LiFePO4 extension cable, 500 mm – 28002461


• NiMH connection cable, 500 mm – 28002462


• Strain-relief enclosure – 28003813


• Compatible DALI emergency-lighting controller

COMPARISON WITH RELATED 50V PRO MODELS

• 89800627 – PRO 202: 1.5 W emergency output


• 89800902 – PRO 202A: 2.3 W emergency output


• 89800628 – PRO 203: 2.5 W with NiMH or 3.2 W with LiFePO4


• 89800629 – PRO 204: 3.5 W with NiMH or 4.1 W with LiFePO4

All models support selectable one-, two- or three-hour duration and LED modules within the 10–54 V range. Battery compatibility and emergency power differ between models.
