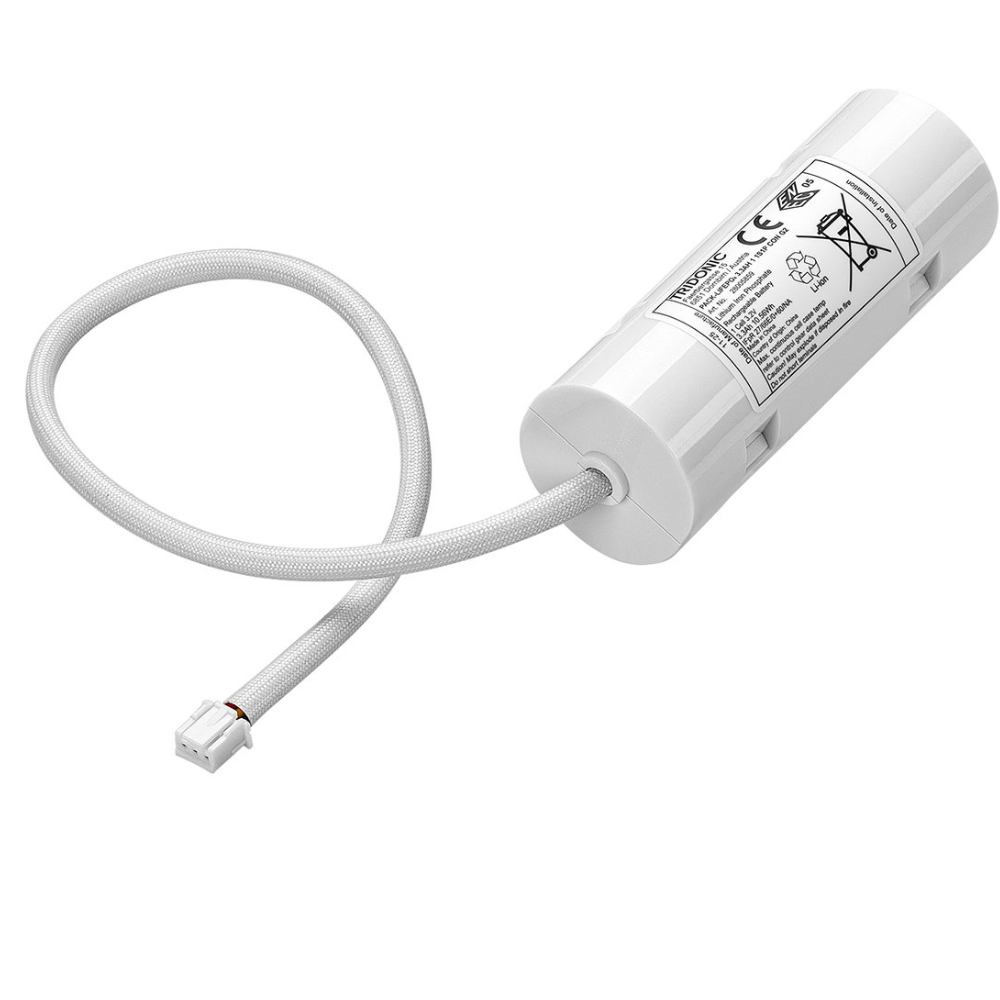

Tridonic PACK-LiFePO4 3.3Ah 1 1S1P CON G2 Emergency Battery Pack – 28005859

The Tridonic PACK-LiFePO4 3.3Ah 1 1S1P CON G2 is a rechargeable lithium iron phosphate battery pack for compatible Tridonic emergency-lighting control gear.

Unlike the preceding 3.0Ah, 4.5Ah and 6.0Ah packs, which use combinations of 1.5Ah 18650 cells, the 28005859 contains one higher-capacity 3.3Ah 26650 LiFePO4 cell. Its 1S1P configuration means one cell is connected in one series and one parallel group, providing a nominal voltage of 3.2V and a rated capacity of 3.3Ah.

The cell is housed in a compact polycarbonate remote enclosure measuring 91.5 × 35 × 39.4mm. This makes the pack useful where a short, contained battery format is preferred over a longer stick or multi-cell enclosure.

Integrated electronics protect the battery against deep discharge, overcharging, short circuits and excessive temperature. When used within Tridonic’s specified temperature limits, the battery has a stated design life of up to eight years.

The 28005859 must only be connected to Tridonic emergency-lighting equipment that specifically lists it as an approved battery. Similar voltage or capacity values do not establish compatibility.

TECHNICAL SPECIFICATION

• Manufacturer: Tridonic


• Product family: EM Batteries


• Product designation: PACK-LiFePO4 3.3Ah 1 1S1P CON G2


• Article number: 28005859


• EAN: 9006210882550


• Battery chemistry: Lithium iron phosphate


• Battery abbreviation: LiFePO4


• Cell format: 26650


• Configuration: 1S1P remote battery pack


• Number of cells: One


• Series arrangement: One cell in series


• Parallel arrangement: One cell in parallel


• Rated capacity: 3.3Ah


• Nominal battery voltage: 3.2V


• Minimum protected cell voltage: 2.0V


• Overcharge protection threshold: 3.9V


• Battery protection: Integrated electronic protection


• Deep-discharge protection: Yes


• Overcharge protection: Yes


• Short-circuit protection: Yes


• Overtemperature protection: Yes


• Enclosure material: Polycarbonate


• Connecting cable: 1.0mm² stranded wire


• Enclosure dimensions: 91.5 × 35 × 39.4mm


• Weight: Approximately 125g


• Eight-year design-life temperature: Up to 25°C ambient


• Six-year design-life temperature: Up to 35°C ambient


• Four-year design-life temperature: Up to 45°C ambient


• Recommended storage temperature: −20°C to +35°C


• Recommended maximum storage period before recharging: 15 months from the stated manufacturing date


• Applicable luminaire standard: IEC 60598-2-22


• Cell testing: IEC 62133 permanent-charge endurance requirements


• Enclosure glow-wire test: 850°C


• Manufacturer’s guarantee: Five years, subject to Tridonic conditions

PACKAGE CONTENTS

• One Tridonic PACK-LiFePO4 3.3Ah 1 1S1P CON G2 battery pack


• Integral connecting lead and connector

The emergency driver, status-indicator LED, test switch, extension lead and other accessories are not included unless expressly stated in the product offer.

COMPATIBILITY

The 28005859 is intended exclusively for compatible Tridonic emergency-lighting control gear.

It appears as an approved option for selected products across Tridonic’s EM converterLED and EM powerLED ranges. Depending on the driver, it may support different emergency durations or output levels.

Compatibility depends on:

• Exact emergency-driver article number


• Required emergency duration


• Emergency output power


• LED-module operating voltage


• Approved cell technology and capacity


• Required connector arrangement


• Available installation space


• Permitted operating temperature

Check the current battery-assignment table in the emergency driver’s technical documentation before ordering or installation.

Do not assume that the 28005859 can replace a 3.0Ah two-cell 18650 pack merely because their capacities are similar.

INSTALLATION AND COMMISSIONING

This battery must be installed by a competent person and connected only to approved Tridonic emergency-lighting equipment.

Secure the enclosure within the luminaire or approved installation space. Keep the battery away from excessive heat, moisture, sharp edges and components that could damage the enclosure or connecting cable.

New LiFePO4 batteries may require two or three complete charge-and-discharge cycles to achieve their full rated capacity. Each activation cycle should include:

1. A complete 24-hour charge


2. A full emergency-duration discharge


3. A further complete recharge

If the first duration test is unsuccessful, recharge the battery for another 24 hours and repeat the test.

Avoid excessive battery cycling during building installation. Keep the battery disconnected until a stable, continuous mains supply is available.

STORAGE INFORMATION

• Store the battery in its original packaging.


• Keep it disconnected during storage and transportation.


• Store it in dry, low-humidity conditions.


• Recommended storage temperature: −20°C to +35°C.


• Recommended relative humidity: 60% ±5%.


• Avoid corrosive gases, direct sunlight and excessive heat.


• Do not store the battery in a discharged condition.


• Recharge it within the period specified by Tridonic.


• Do not leave it connected to an unpowered emergency driver for an extended period.

BATTERY SAFETY

• Use only with emergency equipment approved by Tridonic.


• Do not short-circuit the battery terminals.


• Do not open, dismantle, crush, puncture or modify the battery pack.


• Keep the enclosure and connecting cable away from sharp edges.


• Do not expose the battery to fire, excessive heat or direct sunlight.


• Protect it from moisture and water.


• Transport and store it in its original packaging.


• Observe the applicable lithium-battery transport requirements.


• Replace damaged, swollen, leaking or overheated batteries immediately.


• If battery fluid contacts the skin, rinse thoroughly with water and seek medical advice where necessary.


• Dispose of the battery through an authorised battery-recycling facility.


• Do not dispose of it with general household or commercial waste.
