Liteplan MML/4W/TP60 Emergency Conversion Kit

Liteplan MML/4W/TP60 3-Hour LED Emergency Conversion Kit - Mains 240v

Compact 3-hour remote LED emergency conversion kit for 220-240V mains voltage LED loads. Suitable for many non-dimmable GU10 LED lamps and passes through 60mm ceiling apertures for remote installation.

Speak to sales about bulk prices, large quotes & general enquiries.

Trade, FM & Public Sectors — Call Us About Open Credit Terms.

0113 518 8886

Availability :
In Stock

~~£88.80 Incl. VAT£74.00 Excl. VAT~~£62.40 Incl. VAT£52.00 Excl. VAT

MPN :
MML/4W/TP60

80+ Sold

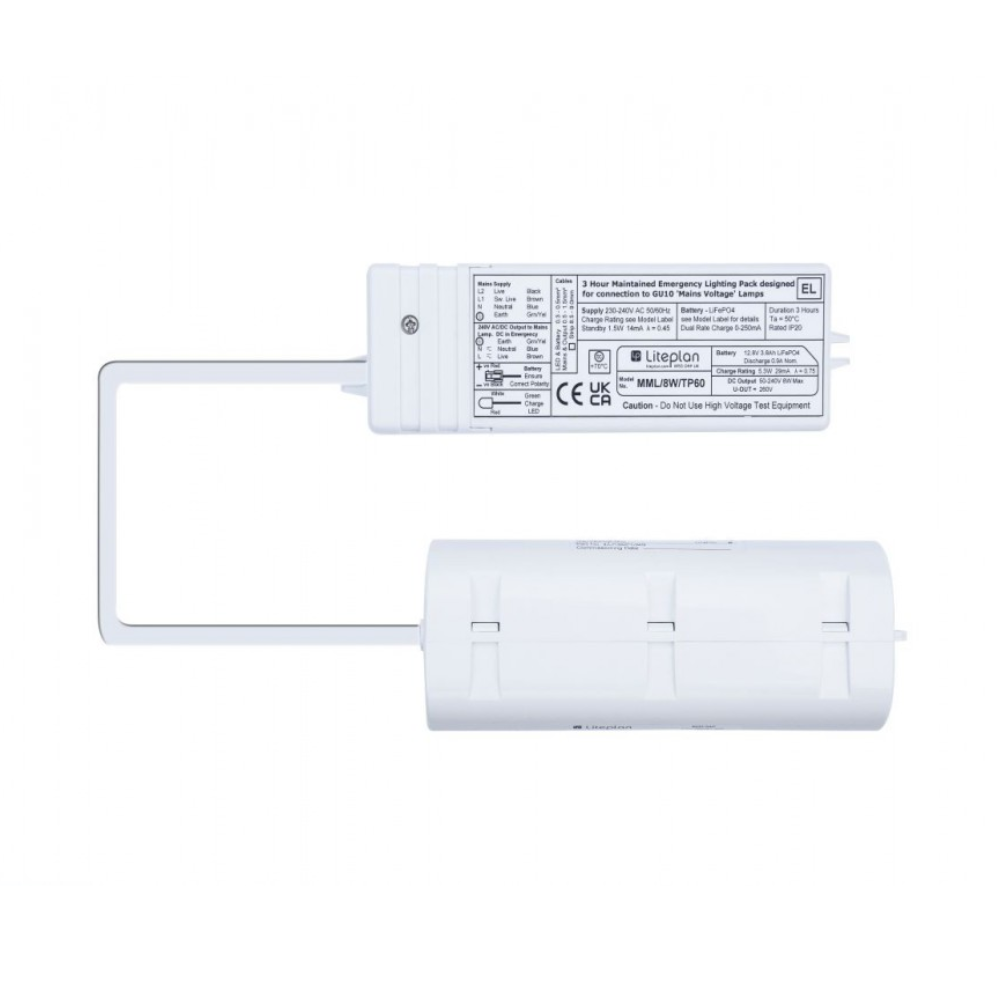

The Liteplan MML/4W/TP60 is a compact 3-hour remote LED emergency conversion kit designed for mains voltage 220-240V LED loads.

Supplied as a split-pack remote emergency kit, the MML range is designed for installation away from the luminaire, making it ideal for fittings with restricted internal space. The slimline housing is capable of passing through a 60mm ceiling aperture, allowing convenient installation within ceiling voids or remote locations adjacent to the fitting.

Suitable for many mains voltage LED lamps and fittings, the MML/4W/TP60 is commonly used with compatible non-dimmable GU10 lamps, pendants and downlights. As most leading 240V LED lamps contain internal DC conversion drivers, this emergency pack is compatible with a wide range of applications, subject to testing.

Please note:

Suitable for 220-240V mains voltage LED loads only

Must NOT be used with 12V LED lamps such as MR16 LEDs

The MML/4W/TP60 provides 100% emergency output (EOFi) for up to 3 hours and is capable of powering loads up to 4W during emergency operation.

Using long-life LiFePO4 (lithium iron phosphate) battery technology, the unit offers reliable emergency performance, low maintenance requirements and excellent long-term reliability.

Key Features:

3-hour remote LED emergency conversion kit

Suitable for 220-240V DC LED loads

Powers up to 4W LED load in emergency

Split-pack remote installation design

Passes through 60mm ceiling apertures

Suitable for many non-dimmable GU10 LED applications

Ideal for pendants and downlights

Long-life LiFePO4 battery technology

Deep discharge protection

Compact remote housing

Important Compatibility Information:

Suitable for mains voltage LED lamps only

Compatible with many non-dimmable 240V LED lamps subject to testing

Not suitable for 12V MR16 LED lamps

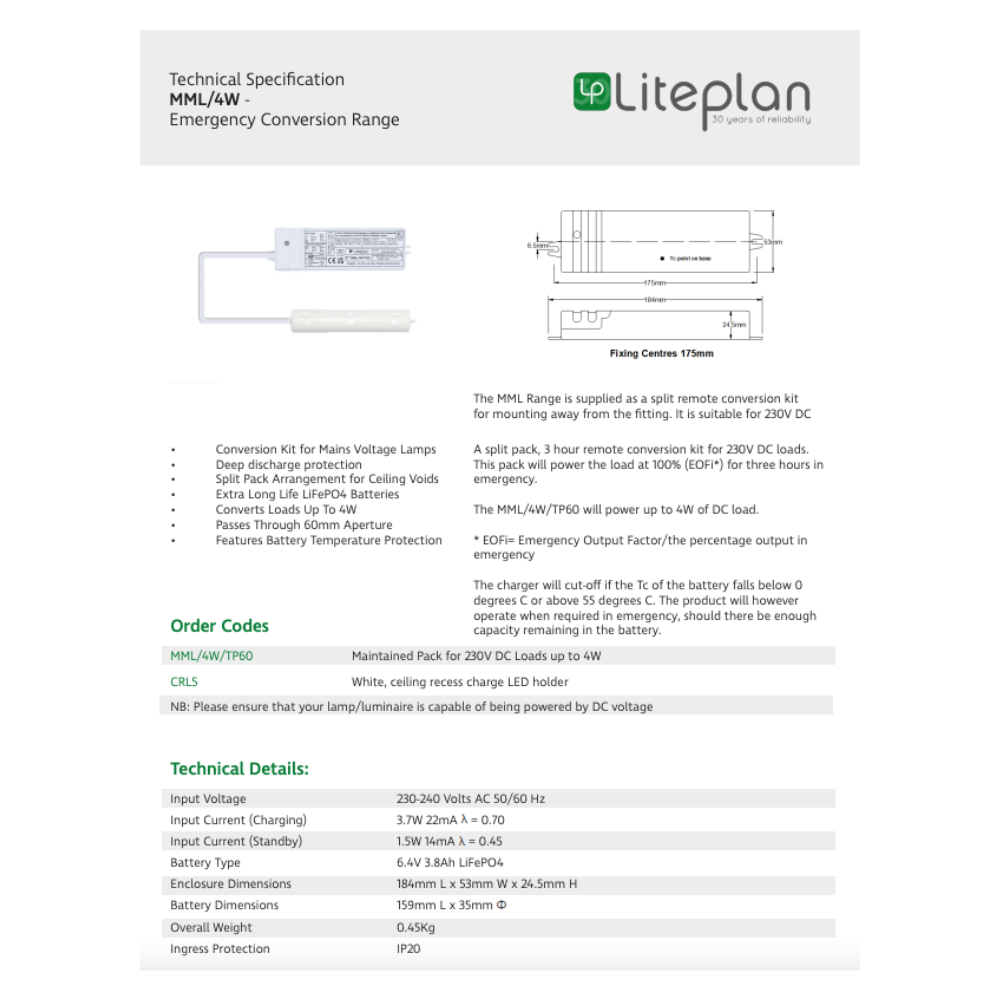

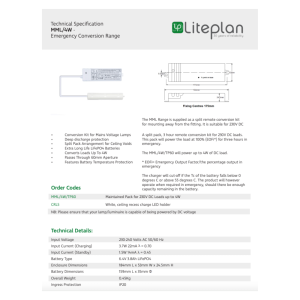

Technical Information:

Input Current (Charging): 3.7W / 22mA

Input Current (Standby): 1.5W / 14mA

Battery Type: 6.4V 3.8Ah LiFePO4

Enclosure Dimensions: 184mm x 53mm x 24.5mm

Battery Dimensions: 159mm x 35mm Ø

IP Rating: IP20

Weight: 450g

Typical Applications:

GU10 LED downlights

Pendant fittings

Retail lighting

Commercial lighting

Architectural lighting

Remote emergency installations
