Liteplan D2N/1S/80-K DALI LED Emergency Conversion Kit (6-80v)
The Liteplan D2N/1S/80-K is a 3 hour DALI-2 self-test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. D2N/1S/80 automatically adjusts the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. Download Datasheet | FREE Delivery
Availability :
In Stock
£66.00 Excl. VAT
MPN :
D2N/1S/80-K
40+ Sold
| Qty | Discount | % | Price |
|---|---|---|---|
| 2-5 | Percentage | 8 | £60.72 |
| 6-9 | Percentage | 15 | £56.10 |
| 10-19 | Percentage | 20 | £52.80 |
| 20-999999 | Percentage | 25 | £49.50 |
The Liteplan D2N/1S/80-K is a 3 hour DALI-2 self-test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. D2N/1S/80 automatically adjusts the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration.
This D2N/1S/80 will operate LED loads between 6 and 80V forward. All Liteplan batteries supplied with this kit feature temperature monitoring. The batteries in this kit can be replaced.
In keeping with the latest update to BS EN 61347-2-7, their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing there is enough capacity remaining in the battery. Liteplan lithium iron phosphate cells feature a low self-discharge of 5% per month. Suitable to operate with the LiteMesh wireless system.

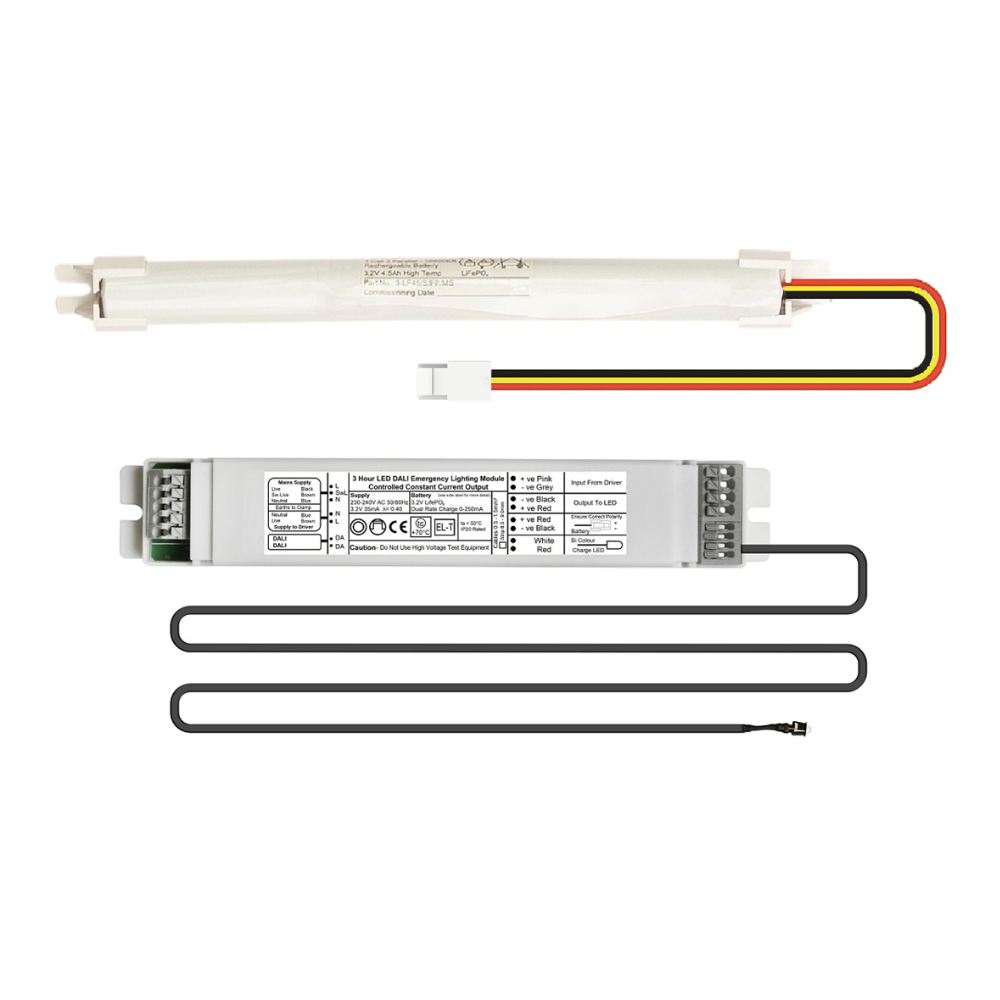

Module – 178mm x 30mm x 22.5mm FC=172mm /1 Battery – 90mm 28mm Ø /1S Battery – 230mm x 24mm x 21mm
| Kit Type | Dali-2 Emergency Conversion |
| LED Voltage Range | 6-80v |
| Battery mA | 1.1A |
| Battery Spec | 3.2V 4.8Ah LiFePO4 |
| Battery Cut Off | 2.5v |
| Power Rating | 1.4W 12mA λ = 0.48 |
| Charge Current | 225mA Nominal |
| Recharge Period | 24 Hours |
