Helvar LED Dali & Switch Dim Dimmable Driver (LC45SE-DA-600-1050-LOOP)

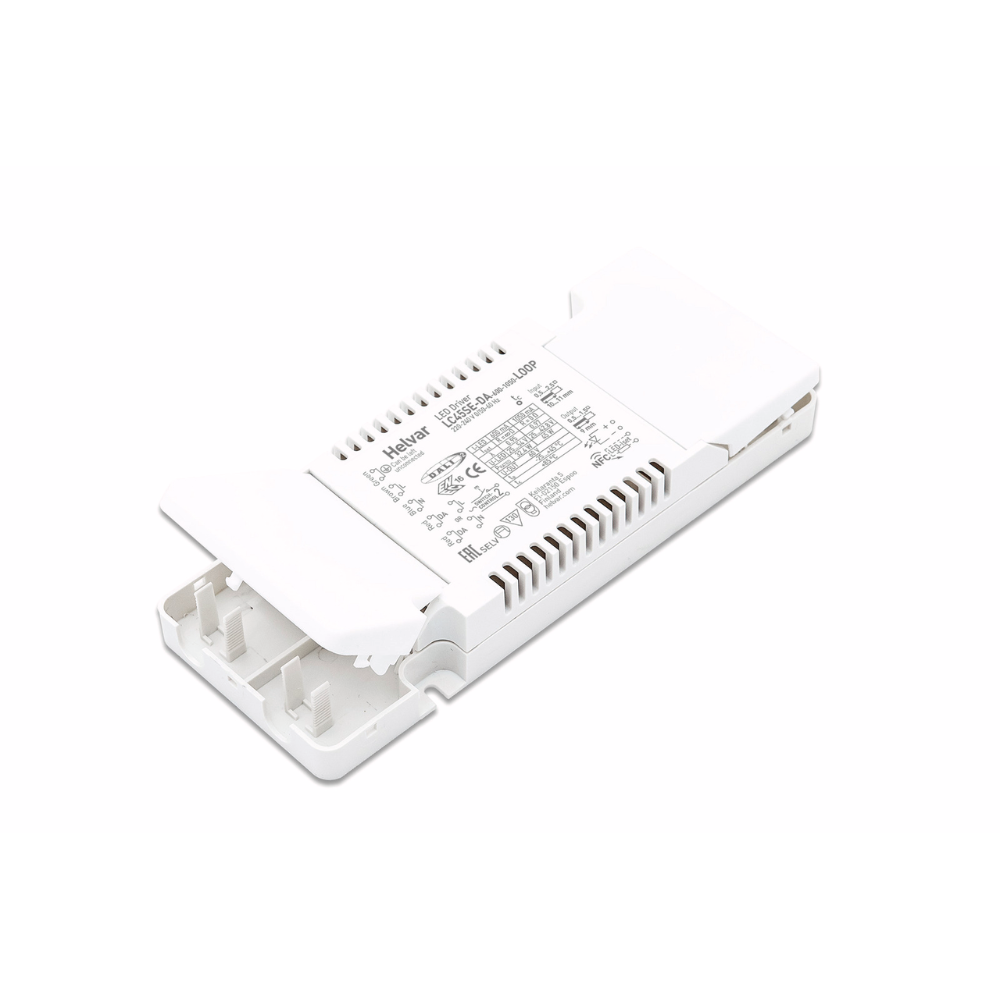

Helvar LC45SE-DA-600-1050-LOOP DALI-2 Dimmable LED Driver

Compatible with Cardia 600×600 & 1200×300 LED Panels

The Helvar LC45SE-DA-600-1050-LOOP is a premium DALI-2 dimmable LED driver designed for professional lighting applications. Used with our Cardia 600×600 and 1200×300 LED panels, it delivers smooth, flicker-free dimming, excellent energy efficiency, and long-life reliability — ideal for modern commercial installations.

• Adjustable Output Current: 600–1050 mA, suitable for both 600×600 and 1200×300 panels


• DALI-2 Dimming (1–100%): Precise control and compatibility with advanced lighting systems


• High Efficiency: Up to 88% with a power factor of 0.97


• Long Lifetime: Up to 100,000 hours for dependable performance


• Wide Input Range: 198–264 VAC / 176–280 V DC

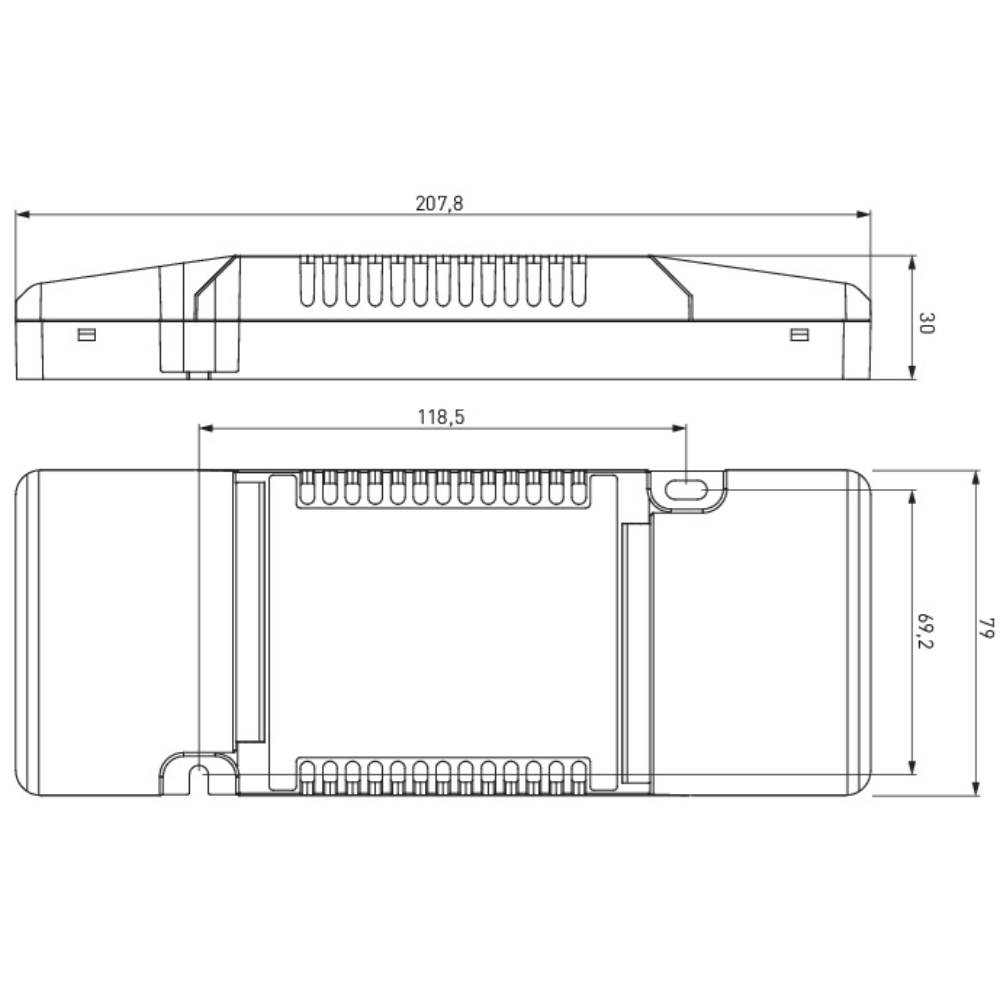

• Compact Design: 207.8 × 79 × 30 mm for shallow ceiling voids


• Advanced Features: NFC programming, current setting resistors, and Constant Light Output (CLO)


• Safe and Robust: IP20 rated, Class I/II/III compatible, with integrated strain relief

Why It’s Ideal for Cardia Panels

• Optimised for consistent lumen output across both panel sizes


• Delivers smooth, flicker-free DALI dimming for offices, schools, and retail environments


• Energy-efficient and reliable to reduce long-term running costs


• Compact, easy-fit design ideal for both new installations and retrofit projects

Technical Specifications

Applications

• Office and commercial buildings


• Schools and universities


• Retail and showroom spaces


• Healthcare and hospitality environments


• General indoor lighting and retrofit upgrades

Installation Notes

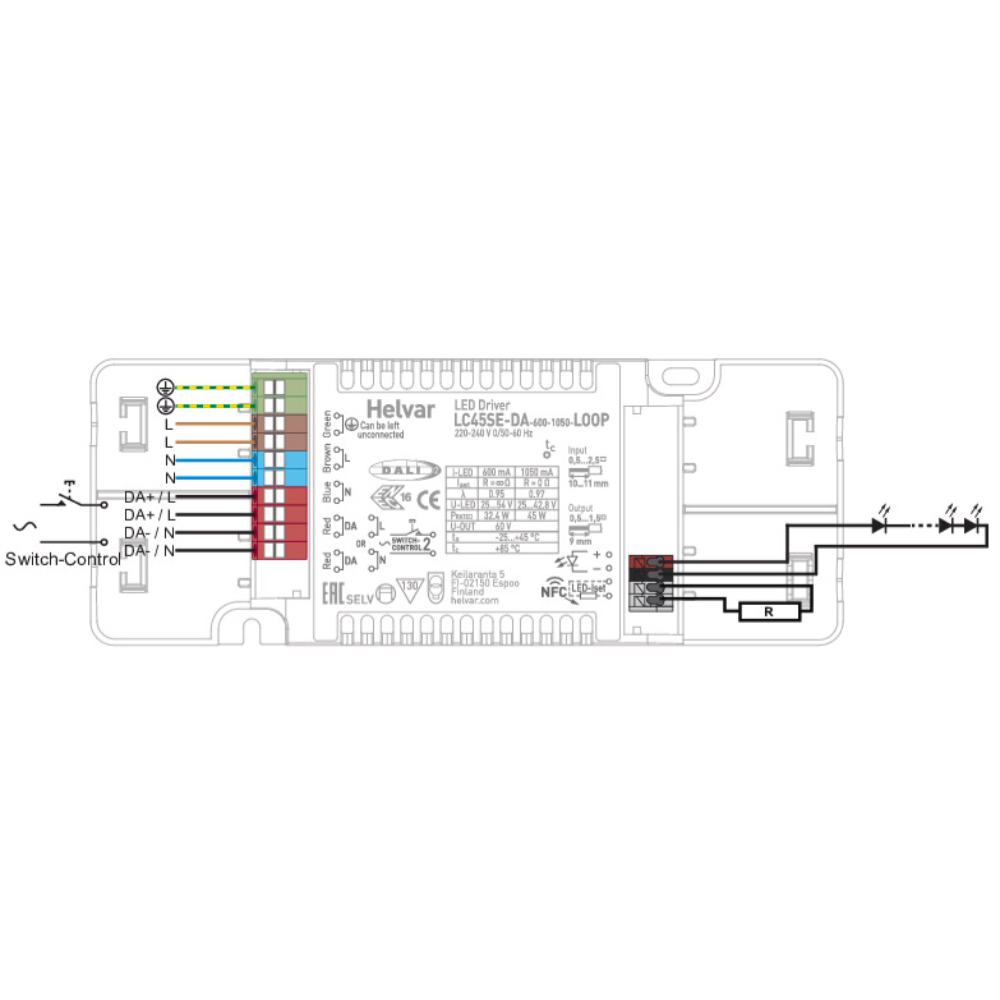

Set the correct output current for your chosen panel type. Ensure adequate ventilation to maintain lifetime performance. For dimming applications, connect to a DALI-2 compatible control system.

Why Buy from Direct Lighting Supplies

Every Helvar driver we supply is fully tested and approved for use with our Cardia LED panel range. You’ll receive genuine, high-quality components backed by expert technical support, consistent performance, and a full manufacturer warranty — ensuring your lighting installation runs reliably for years to come.
