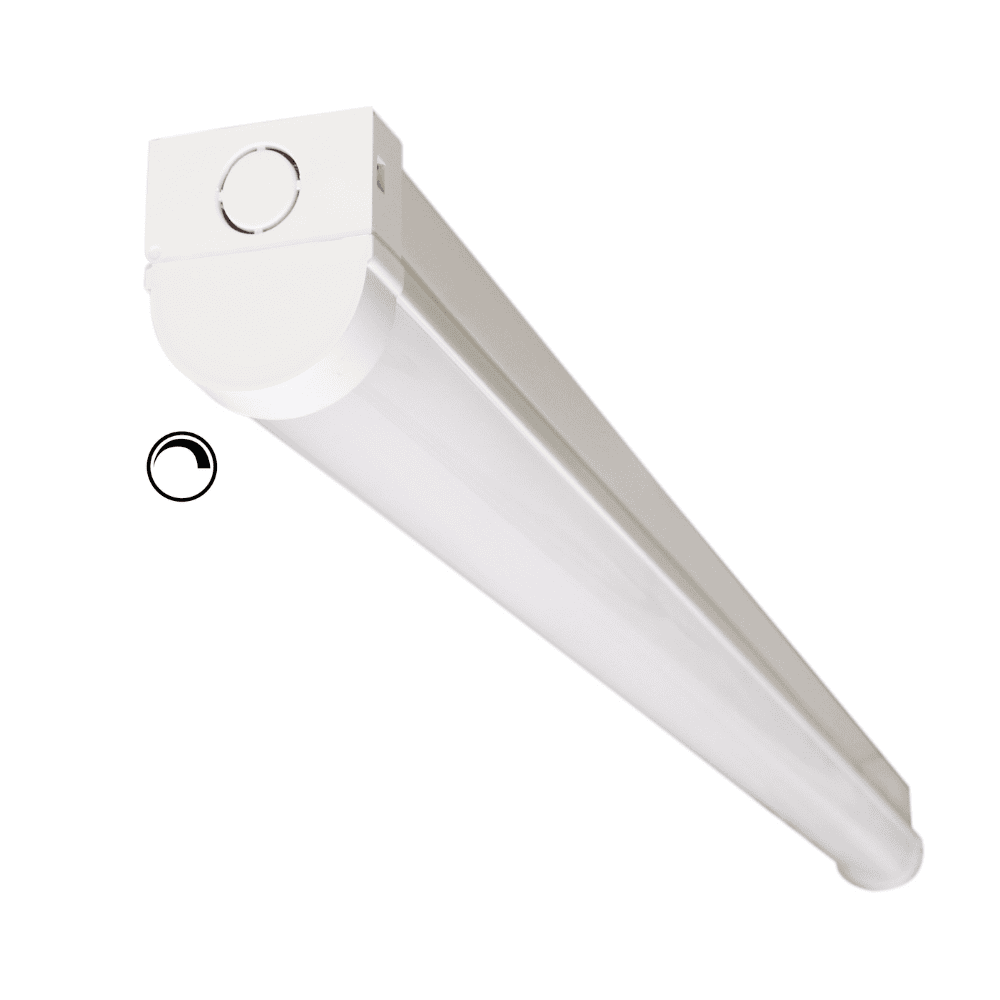

Introducing the Dimmable Leda 5ft Single LED 32w Batten - CCT Switchable Colour (Part number: 500002-DD), the most advanced Switch Dimming & DALI/DALI-2 Dimmable 5ft Single LED Batten Fitting available that redefines the way you illuminate and control your space. This unique batten allows Switch Dimming and also DALI Dimming depending on your lighting requirements.
Switch Dim, also referred to as Push Dim, whereby you control a smaller series of LED Battens or a single Batten with a retractive dimmer switch. A single push or click turns the Batten(s) on/off like a normal lighting fitting, but has the ability to dim the lighting levels via the same switch. Just make sure you install a Switch Dim/Push Dim 'retractive' dimmable switch if this is your chosen setup. You also need to be aware that the driver needs a permanent live, switched live (from the retractive switch), earth and neutral. Therefore, requires more wires than a standard fitting.
DALI, which stands for Digital Addressable Lighting Interface is a 2-way communications protocol which allows you to communicate and control components in an advanced lighting system. This Dimmable Leda 5ft Single LED 32w Batten - CCT Switchable Colour can also be used in advanced DALI lighting systems as well as Switch Dim setups. This batten is manufactured using a Helvar LL80HE-DA-100-800 Dimmable LED Driver which delivers this unique flexibility to operate both dimming functionality.
There are 2 types of DALI interface, the first being the original DALI IEC60929 interface from the late 90s and the more recent DALI-2 IEC62386 which was introduced in 2020. The Dimmable Leda 5ft Single LED 32w Batten - CCT Switchable Colour can be used in both systems. However, if you are unsure about your setup or you'd like to ask us a question before ordering. Just drop us an email below and we'll get back to you within the working day.
On top of these advanced features, you still get the same quality construction, backed by a 5-year warranty for peace of mind. In the highly unlikely event of failure, we will replace like for like or replace any components free of charge during this period.
Wattage | 32w |
Lumens | 4000, 4320, 4160 lm |
Colour Temperature | 3000k, 4000k, 6000k (Switchable) |
Dimensions | 1462 x 62 x 74mm |
Dimmable | Yes (Switch/Push Dimming & DALI Dimming) |
LED Driver | Helvar LL80HE-DA-100-800 |
LED Type | SMD 2835-120 |
Switch Cycles | 100,000 |
IP Rating | IP20 |
Average Life | 50,000 Hours |
Warranty | 5 Years |
