Carida Mains/Triac Dimmable 600x600 LED Panel 30w - 6000K

Carida Mains / TRIAC Dimmable 600×600 LED Panel 30W – Daylight 6000K

Mains dimmable LED panel with Optronic driver

The Carida Mains / TRIAC Dimmable 600×600 LED Panel is a high-quality recessed ceiling panel designed for simple, reliable dimming using standard mains dimmer switches. This version is supplied with an Optronic OT Fit 30/220-240/700 CS PC LED driver, providing smooth phase-cut dimming without the need for DALI or specialist control systems.

• Dimming Type: Mains / TRIAC dimming via standard wall dimmer switches (leading or trailing edge)


• Driver Supplied: Optronic OT Fit 30/220-240/700 CS PC


• Power Output: 30 W LED panel with daylight white 6000K light output


• Smooth Dimming: Stable, low-flicker performance when used with compatible LED dimmers


• Slim Panel Design: Fits standard 600×600 ceiling grids with a clean, modern finish


• Comfortable Lighting: Even light distribution suitable for offices and commercial interiors


• Energy Efficient: Designed for low running costs and long service life


• Indoor Use: IP20 rated

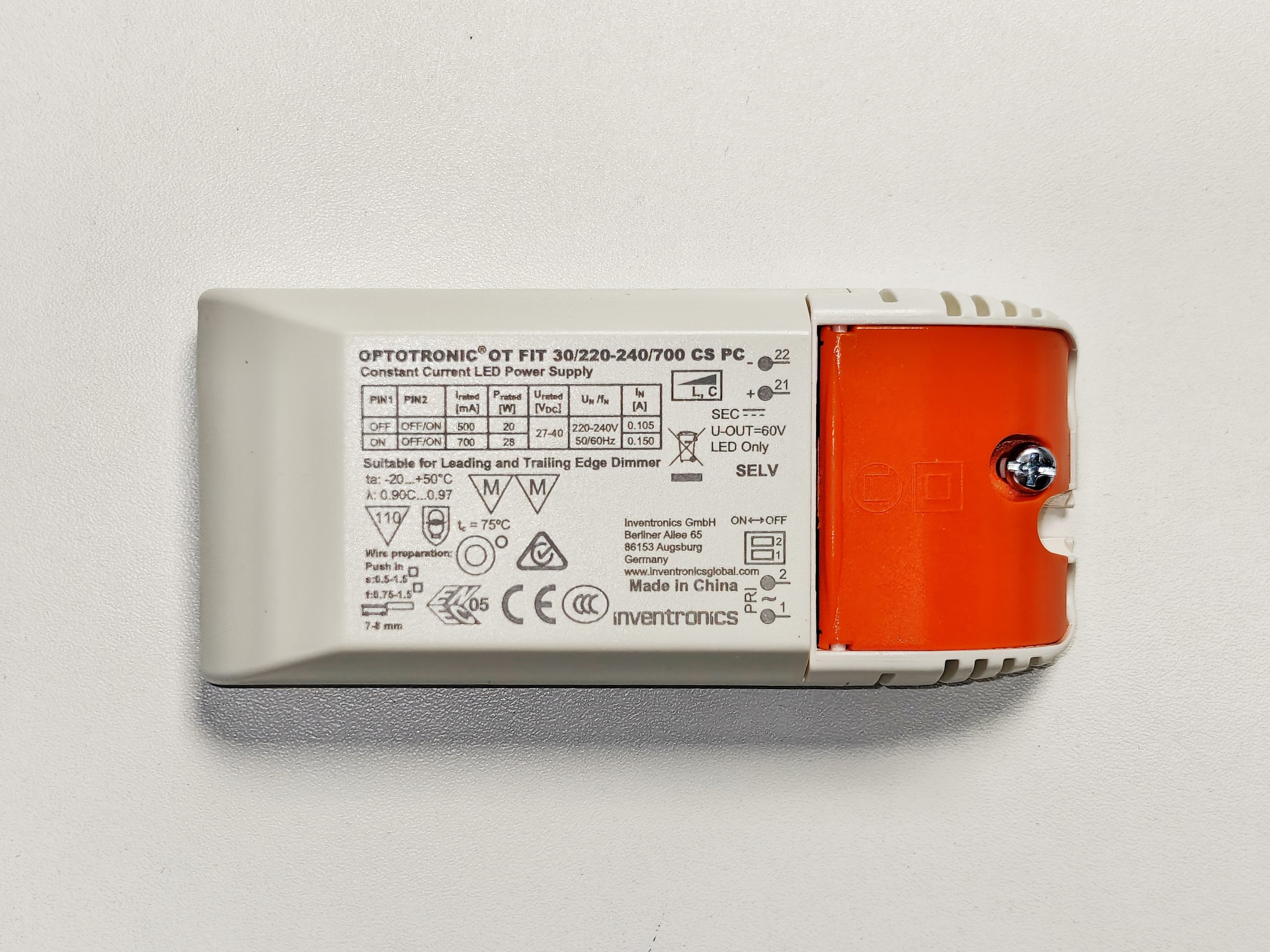

Driver Information

• Manufacturer: Optronic


• Model: OT Fit 30/220-240/700 CS PC


• Input Voltage: 220–240 V AC


• Output Current: 700 mA constant current


• Dimming Method: Phase-cut (TRIAC)


• Protection Class: Class II

Technical Specifications

• Panel Size: 600 × 600 mm


• Nominal Power: 30 W


• Colour Temperature: 6000 K (Daylight White)


• Dimming Type: Mains / TRIAC (phase cut)


• Driver: Optronic OT Fit 30/220-240/700 CS PC


• Input Voltage: 220–240 V AC


• Mounting: Recessed ceiling grid


• IP Rating: IP20


• Typical Lifetime: 50,000 hours

Applications

• Office and commercial environments


• Education and public buildings


• Retail and showroom spaces


• Meeting rooms, corridors and communal areas

Installation Notes

Install into a standard 600×600 ceiling grid and connect to a compatible LED mains dimmer switch. For best results, use trailing-edge dimmers designed for LED loads. Always ensure the dimmer rating is suitable for the connected load.

Why Choose This Panel

This TRIAC-dimmable Carida LED panel combines the simplicity of mains dimming with the reliability of an Optronic OT Fit driver. It’s an ideal solution for projects requiring adjustable lighting without the complexity or cost of DALI control systems.
